using sg_scan.exe#

sg_scan.exe is simple but crucial to find sas devices, giving the physical device reference and the scsi device reference. the latter is often needed to interact with expanders.

todo optical drive example#

simple scan#

the basic form. will show physical drive number and assigned drive letter.

sg_scan.exe
PD0     [S]     NETAPP    X670_S164315TATE  NA55  S40TNY0M105275
PD1     [E]     WD_BLACK SN850X 8000GB  638211WD  E823_8FA6_BF53_0001_001B_448B_4071_28F4.
PD2     [C]     WD_BLACK SN850X 8000GB  638211WD  E823_8FA6_BF53_0001_001B_448B_4071_2C80.

scan with bus and adapter#

this will also include the bus type (sas and nvme in this example), as well as include adapter and expander info

the -s option is a bit more important on windows, this is where you’ll get the mapping for most situations where a device is asked in sg3 tools.

unclaimed devices are also shown here.

sg_scan.exe -bs
PD0     [S]     <Sas  >  NETAPP    X670_S164315TATE  NA55  S40TNY0M105275
PD1     [E]     <NVMe >  WD_BLACK SN850X 8000GB  638211WD  E823_8FA6_BF53_0001_001B_448B_4071_28F4.
PD2     [C]     <NVMe >  WD_BLACK SN850X 8000GB  638211WD  E823_8FA6_BF53_0001_001B_448B_4071_2C80.

SCSI2:0,12,0   claimed=1 pdt=0h          NETAPP    X670_S164315TATE  NA55
SCSI2:0,16,0   claimed=0 pdt=dh          BROADCOM  VirtualSES  03
SCSI3:0,0,0    claimed=1 pdt=0h          NVMe      WD_BLACK SN850X   11WD
SCSI4:0,0,0    claimed=1 pdt=0h          NVMe      WD_BLACK SN850X   11WD

alternative: windows task manager#

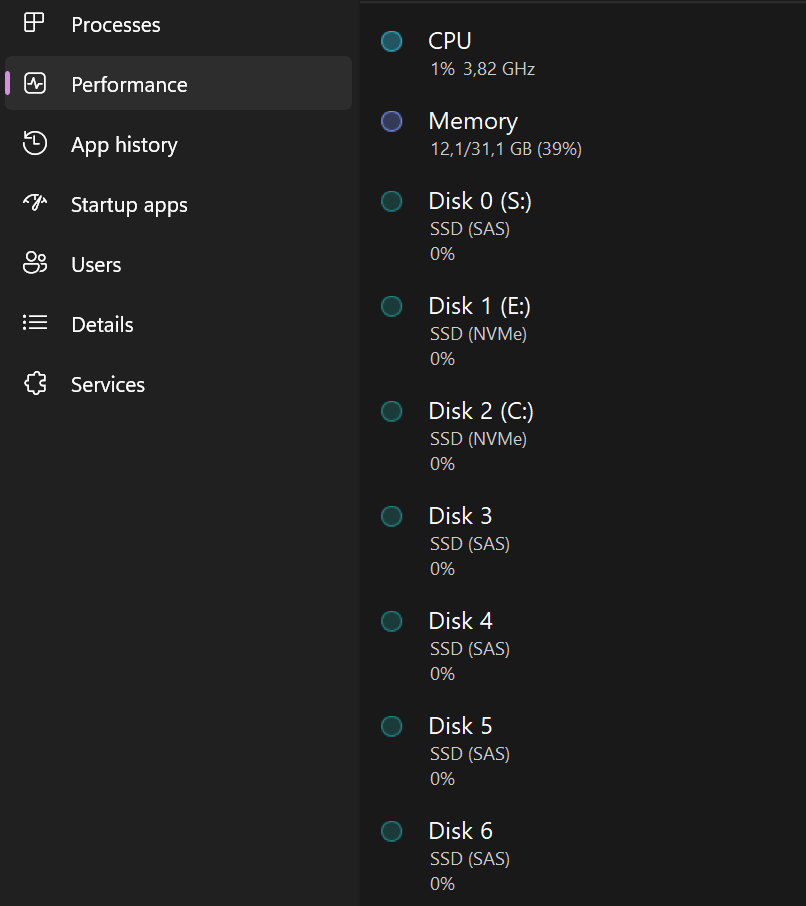

a strange but simple alternative which is also seems to be a lot more responsive than sg_scan.exe is the humble windows task manager in the performance overview. it does not matter if the disk have a drive letter assigned nor what sector size they have. they will show up there.

the times i’ve compared task manager and sg_scan.exe the PD mappings always matched the disk number in task manager. i cannot guarantee this will always be the case, so use caution.
